Masking tap-Masking tap Specifications

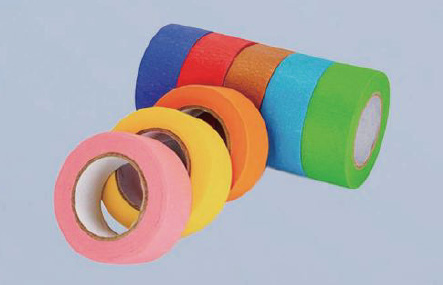

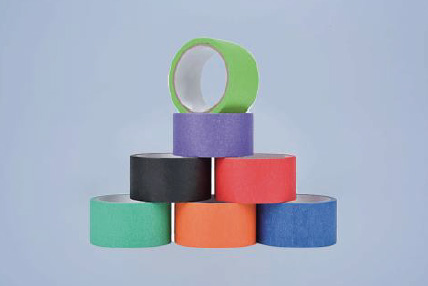

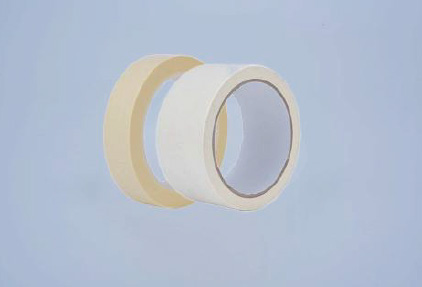

General Purpose Masking Tape
Masking tap is a kind of rolling adhesive tape made of paper and pressure sensitive glue as the main raw material. It has the characteristics of high temperature resistance, good chemical solvent resistance, high adhesive force, soft adhesion and no residual glue.
| Product Code |
Adhesive Type |
Thickness |
Initial Tack |
Tensile Strength |
Elongation |
Masking tape with high heat resistance |
| Masking Tape-1 |
Rubber |
130-140 μm |
6# |
40 N/in |
8% Elongation |
60° |
| Masking Tape-2 |
Rubber |
140-150 μm |
8# |
50 N/in |
8% Elongation |
60° |
| Masking Tape-3 |
Rubber |
150-160 μm |
8# |
60 N/in |
8% Elongation |
60° |
Masking tap Suitable for all kinds of decoration industry, electronics industry, industrial, footwear and other uses, with good cover and protection.

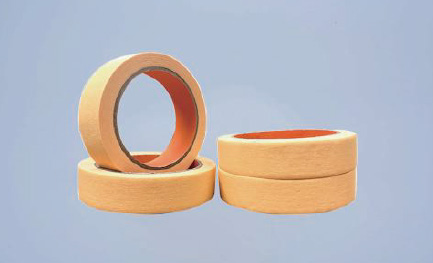

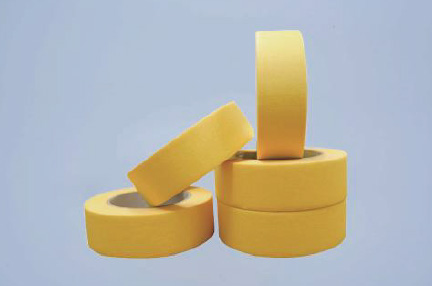

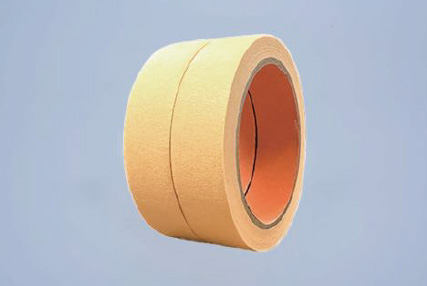

High Temperature Auto Masking Tape-High temp auto masking tap
| Product Code |
Adhesive Type |
Thickness |
Initial Tack |
Peel Adhesive |
Temperature Resistance |
| Auto Masking Tape-1 |
Rubber |
130-140 μm |
5 N/in |
50 N/in |
80°C |
| Auto Masking Tape-2 |
Rubber |
150-160 μm |
5 N/in |
50 N/in |
90°C |
| Auto Masking Tape-3 |
Rubber |
160-170 μm |
6 N/in |
60 N/in |
120°C |
| Auto Masking Tape-4 |
Rubber |
170-180 μm |
6 N/in |
70 N/in |
150°C |
HIGH TEMP AUTO MASKING TAP MAIN USAGE:
High Temperature Auto Masking Tape Automotive and furniture and general coating masking processing, PCB board fixed drilling, paint shielding protection, ceramic capacitors and various electronic parts.

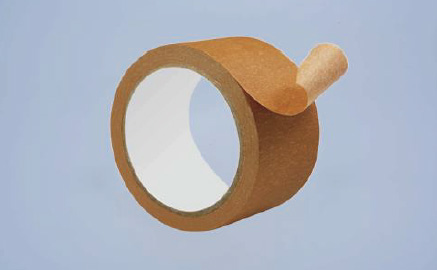

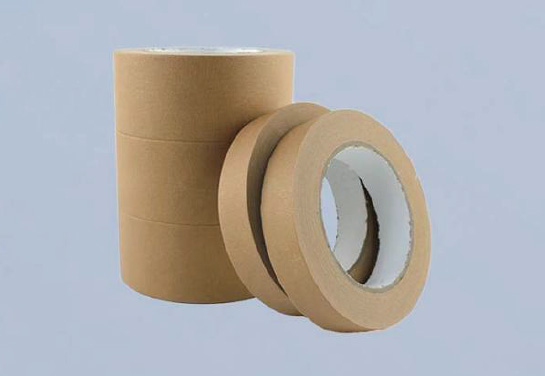

Brown Masking Paper Packing Tape
| Product Code |
Adhesive Type |
Thickness |
Initial Tack |
Elongation |
Tensile Strength |
Temperature Resistance |
| Brown Masking Tape |
Solvent |
120-130 μm |
13-15# |
9.5-11% |
32-35 N/in |
120°C |
BROWN MASKING TAP MAIN USAGE:
It is widely used in sealing and fixing of outer boxes, binding and linking of objects, shielding and protecting of interior decoration, industrial spraying cover, furniture dust cover and other industries of spray paint cover, paste, link, and fixing.

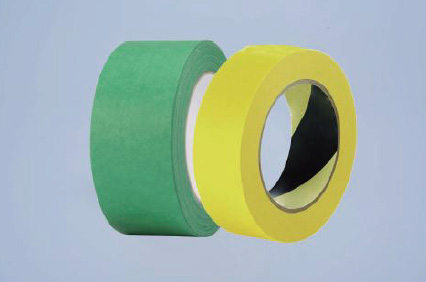

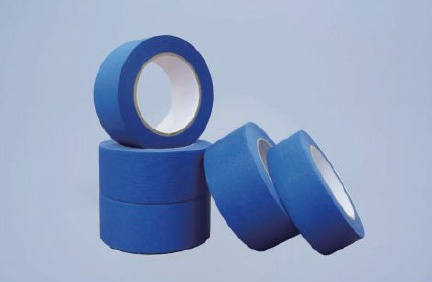

UV Resistant Masking Tape
| Product Code |
Color |
Adhesive Type |
Thickness |
Initial Tack |
Peel Adhesive |
Tensile Strength |
| Uv Resistant Masking Tape-1
|
Blue |
Acrylic |
125-135 μm |
5 # |
3 N/in |
60 N/in |
| Uv Resistant Masking Tape-2
|
Yellow |
Acrylic |
125-135 μm |
5 # |
3 N/in |
60 N/in |
| Uv Resistant Masking Tape-3
|
Green |
Acrylic |
125-135 μm |
5 # |
3 N/in |
60 N/in |
UV RESISTANT MASKING TAP MAIN USAGE:
High temperature anti-UV with 14 days no residual glue, used for decoration, painting, auto paint coating and semiconductor component fixing industries.

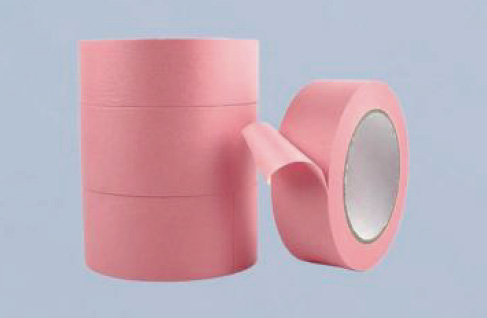

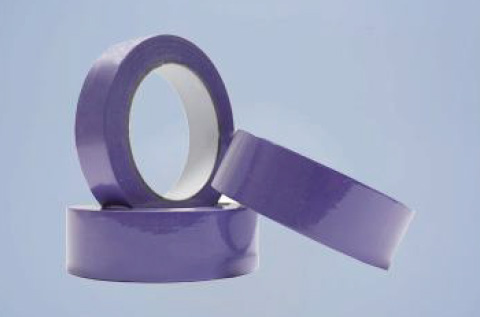

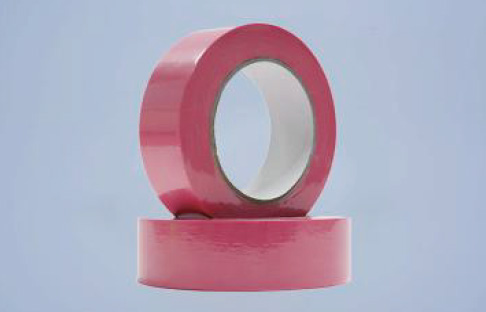

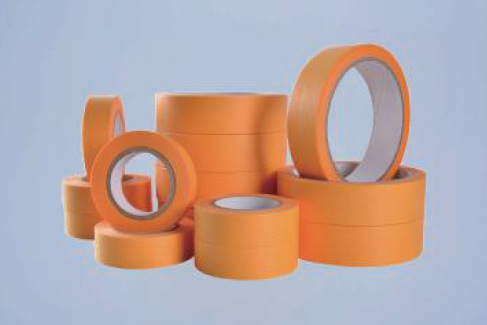

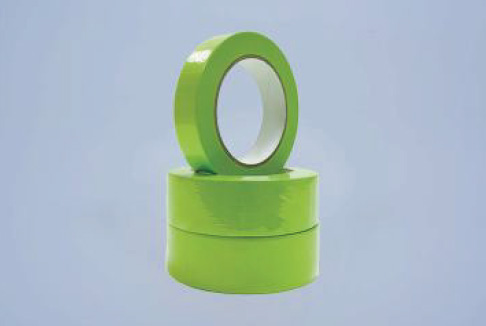

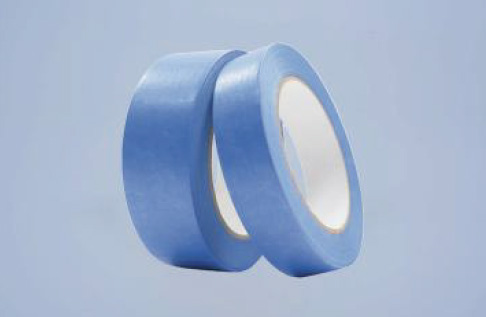

Washi Paper Tape
| Product Code |
Adhesive Type |
Thickness |
Initial Tack |
Peel Adhesive |
Tensile Strength |
| Washi paper tape1 |
Acrylic |
90-110 μm |
10 # |
3 N/in |
70 N/in |
| Washi paper tape2 |
Acrylic |
95-100 μm |
10 # |
3 N/in |
70 N/in |
| Washi paper tape3 |
Solvent |
100-110 μm |
8 # |
3 N/in |
65 N/in |
| Washi paper tape4 |
Acrylic |
110-115 μm |
8 # |
3 N/in |
70 N/in |
| Washi paper tape5 |
Acrylic |
105-115 μm |
9-11 # |
0.8-1.2 N/in |
40-43 N/in |
WASHI TAP MAIN USAGE:
Widely used in adhesive paper, landscaping, layout, DIY, diatom mud and other purposes.

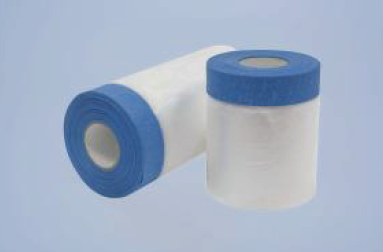

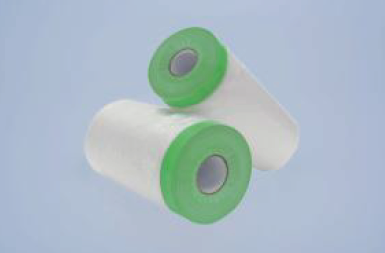

Pre-taped Masking Film
| Product Type |
Product Code |
Tape Thickness |
Film Material |
Film Thickness |
| General Purpose Masking Film |
PTM1 |
130 ± 10 μm |
LDPE |
6.5 μm |

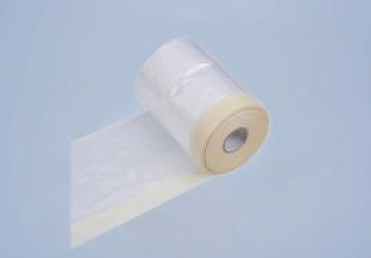

| Washi Tape Masking Film |
PTM2 |
110 ± 10 μm |
LDPE |
6.5 μm |

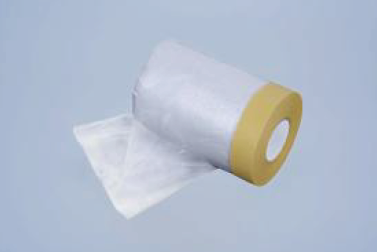

| Kraft Tape Masking Film |
PTM3 |
120 ± 10 μm |
LDPE |
6.5 μm |
| Cloth Tape Masking Film |
PTM4 |
280 ± 10 μm |
LDPE |
6.5 μm |

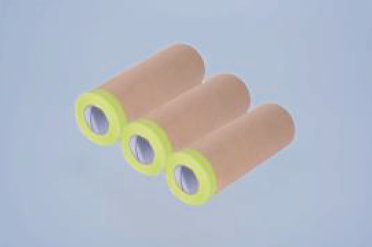

| UV Resistance Masking Film |
PTM5 |
140 ± 10 μm |
LDPE |
6.5 μm |

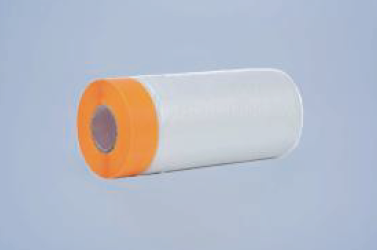

| Auto Masking Film |
PTM6 |
160 ± 10 μm |
LDPE |
6.5 μm |
MAIN USAGE:
Primarily used for shielding paint, protecting surfaces, and interior decoration when painting cars, furniture, and other products. These films provide comprehensive coverage and professional-grade protection during painting and finishing operations.
